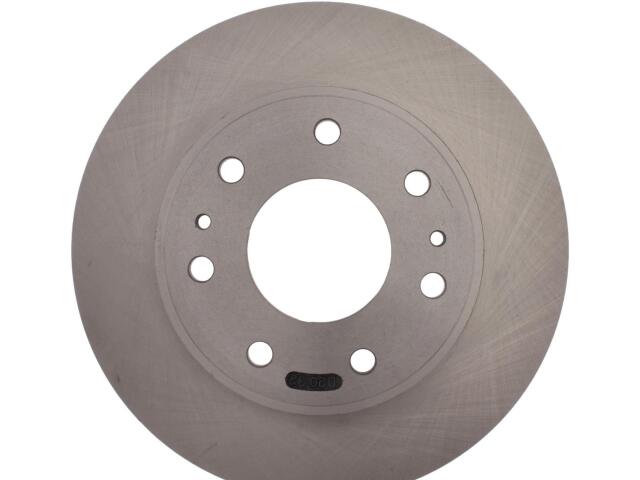

Rotor
FVP : 12165131

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.547
Center Hole Diameter (MM): 90.100
Disc Mounting: Floating
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.500
Mounting Bolt Hole Circle Diameter (IN): 5.906
Mounting Bolt Hole Circle Diameter (MM): 150.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 2.067
Overall Height (MM): 52.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.610
Stud/Lug Hole Diameter (MM): 15.500
Stud/Lug Hole Quantity: 7
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6513*
