FVP
12165121

第三方数据FVP : 12165121

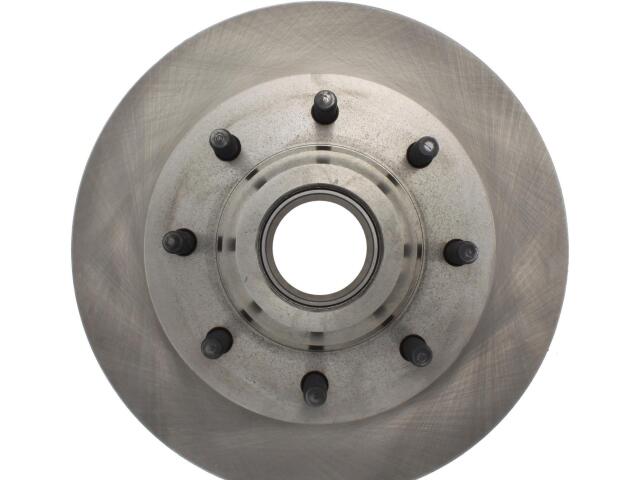

Rotor
FVP : 12165121

ABS Sensor Ring Included: Yes
Bearings Included: No
Bolt Thread Pitch (MM): 1.500
Center Hole Diameter (IN): 4.921
Center Hole Diameter (MM): 125.000
Disc Mounting: Hub & Rotor
Discard Thickness (IN): 1.433
Discard Thickness (MM): 36.400
Inner Bearing #: 415.65008
Inner Race #: 416.65008
Inner Seal #: 417.65024
Mounting Bolt Hole Circle Diameter (IN): 6.693
Mounting Bolt Hole Circle Diameter (MM): 170.000
Nominal Thickness (IN): 1.496
Nominal Thickness (MM): 38.000
Outer Bearing #: 415.65007
Outer Race #: 416.65007
Outside Diameter (IN): 13.661
Outside Diameter (MM): 347.000
Overall Height (IN): 4.547
Overall Height (MM): 115.500
Solid Or Vented Type Rotor: Vented
Stud Thread Diameter (MM): 14.000
Stud/Lug Hole Quantity: 8
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (2)

F-250 SUPER DUTY (5)

F-350 SUPER DUTY (6)

5.4L V8 (4)

6.0L V8 DIESEL Turbocharged (1)

6.2L V8 (2)

6.4L V8 DIESEL Turbocharged (3)

6.7L V8 DIESEL Turbocharged (2)

6.8L V10 (4)

OE号码

品牌	号码
OE	121-6512*
