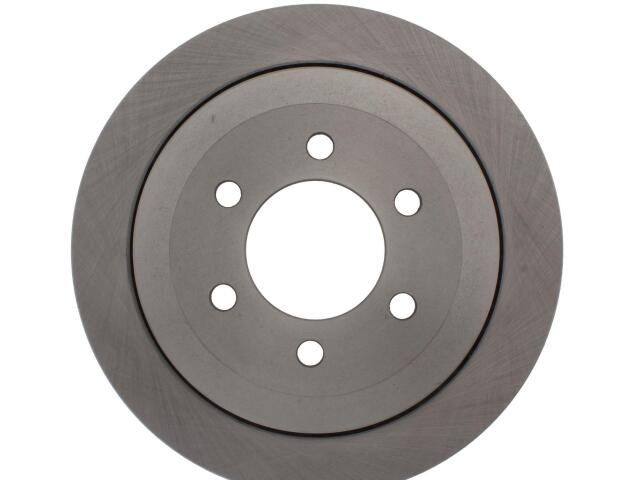

Rotor
FVP : 12165120

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.543
Center Hole Diameter (MM): 90.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 9.063
Hat ID mm: 230.200
Max PB Drum Dia in: 9.098
Max PB Drum Dia mm: 231.100
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135.000
Nominal Drum Diameter (IN): 9.043
Nominal Drum Diameter (MM): 229.700
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 13.465
Outside Diameter (MM): 342.000
Overall Height (IN): 2.165
Overall Height (MM): 55.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.630
Stud/Lug Hole Diameter (MM): 16.000
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	121-6512*
