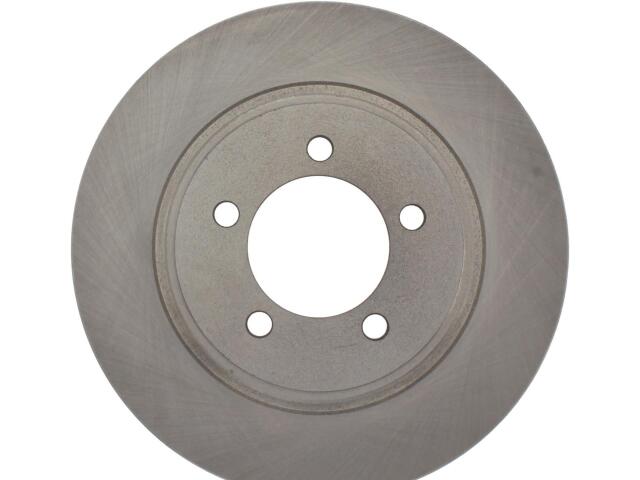

Rotor
FVP : 12165118

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.228
Center Hole Diameter (MM): 82.000
Disc Mounting: Floating
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.016
Outside Diameter (MM): 305.200
Overall Height (IN): 2.138
Overall Height (MM): 54.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.537
Stud/Lug Hole Diameter (MM): 13.650
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (2)

MERCURY (1)

OE号码

品牌	号码
OE	121-6511*
