FVP
12165108

第三方数据FVP : 12165108

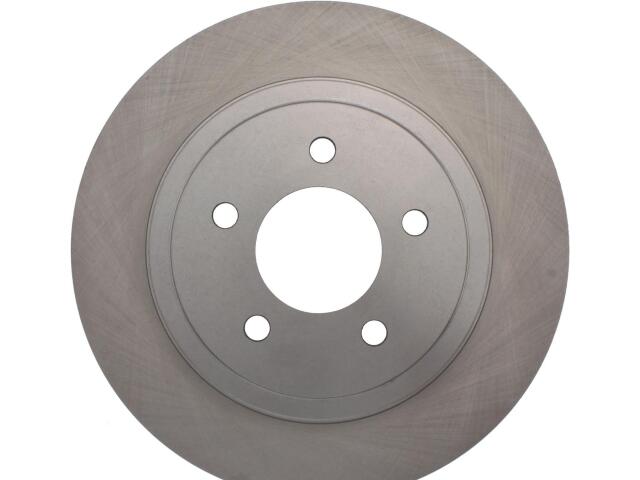

Rotor
FVP : 12165108

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.433
Discard Thickness (MM): 11.000
Max PB Drum Dia in: 7.323
Max PB Drum Dia mm: 186.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.260
Nominal Drum Diameter (MM): 184.400
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 11.890
Outside Diameter (MM): 302.000
Overall Height (IN): 2.205
Overall Height (MM): 56.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.557
Stud/Lug Hole Diameter (MM): 14.150
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	121-6510*
