FVP
12165106

第三方数据FVP : 12165106

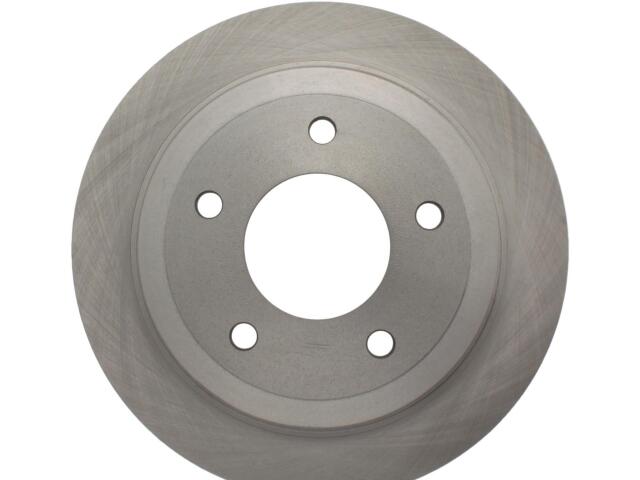

Rotor
FVP : 12165106

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.449
Center Hole Diameter (MM): 87.600
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.803
Discard Thickness (MM): 20.400
Max PB Drum Dia in: 8.157
Max PB Drum Dia mm: 207.200
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Drum Diameter (IN): 8.106
Nominal Drum Diameter (MM): 205.900
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 13.031
Outside Diameter (MM): 331.000
Overall Height (IN): 2.976
Overall Height (MM): 75.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.602
Stud/Lug Hole Diameter (MM): 15.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (2)

OE号码

品牌	号码
OE	121-6510*
