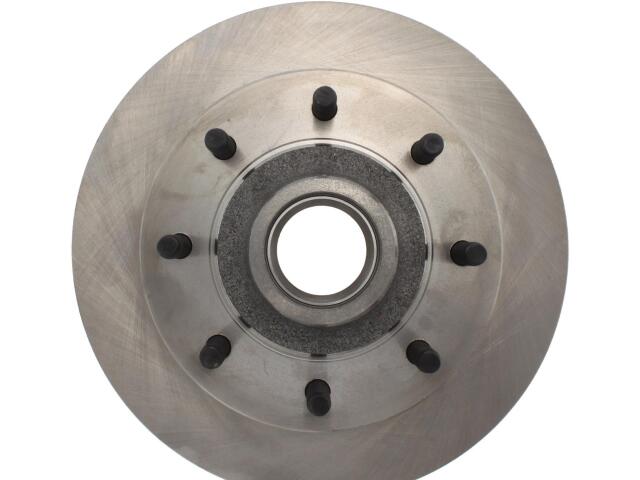

Rotor
FVP : 12165104

ABS Sensor Ring Included: Yes
Bearings Included: No
Bolt Thread Pitch (MM): 1.500
Center Hole Diameter (IN): 4.921
Center Hole Diameter (MM): 125.000
Disc Mounting: Hub & Rotor
Discard Thickness (IN): 1.417
Discard Thickness (MM): 36.000
Inner Bearing #: 415.68004
Inner Race #: 416.68003
Inner Seal #: 417.65003
Mounting Bolt Hole Circle Diameter (IN): 6.693
Mounting Bolt Hole Circle Diameter (MM): 170.000
Nominal Thickness (IN): 1.496
Nominal Thickness (MM): 38.000
Outer Bearing #: 415.68002
Outer Race #: 416.68001
Outside Diameter (IN): 13.031
Outside Diameter (MM): 331.000
Overall Height (IN): 5.650
Overall Height (MM): 143.500
Solid Or Vented Type Rotor: Vented
Stud Thread Diameter (MM): 14.000
Stud/Lug Hole Quantity: 8
Surface Type: Smooth
Vane Style: Pillar

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6510*
