FVP
12165095

第三方数据FVP : 12165095

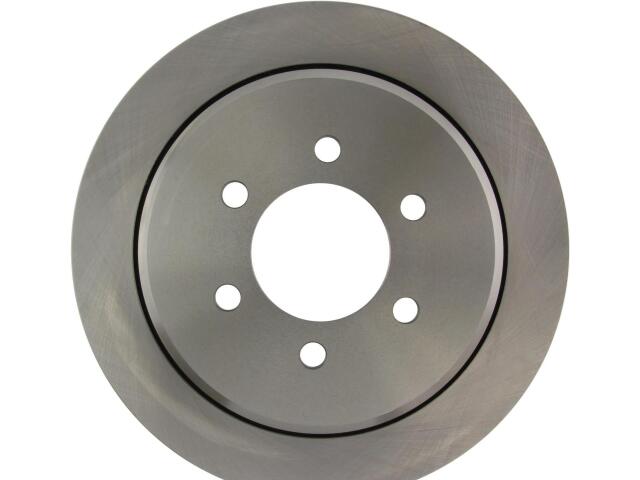

Rotor
FVP : 12165095

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.551
Center Hole Diameter (MM): 90.200
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19.000
Max PB Drum Dia in: 9.173
Max PB Drum Dia mm: 233.000
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135.000
Nominal Drum Diameter (IN): 9.055
Nominal Drum Diameter (MM): 230.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 13.465
Outside Diameter (MM): 342.000
Overall Height (IN): 2.039
Overall Height (MM): 51.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.630
Stud/Lug Hole Diameter (MM): 16.000
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	121-6509*
