FVP
12165094

第三方数据FVP : 12165094

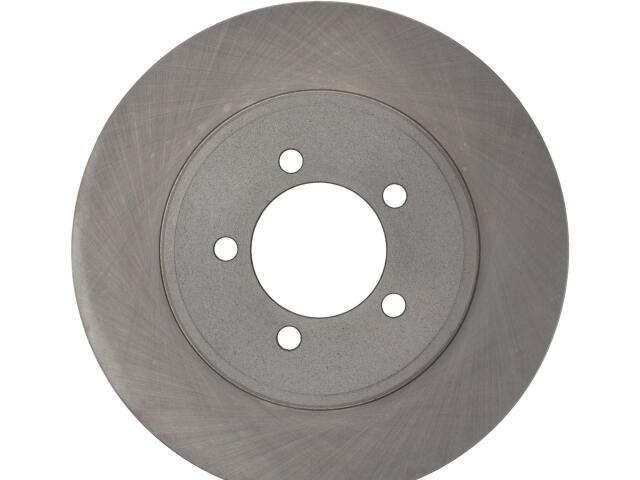

Rotor
FVP : 12165094

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.228
Center Hole Diameter (MM): 82.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Max PB Drum Dia in: 7.272
Max PB Drum Dia mm: 184.700
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.240
Nominal Drum Diameter (MM): 183.900
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 12.709
Outside Diameter (MM): 322.800
Overall Height (IN): 2.299
Overall Height (MM): 58.400
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.535
Stud/Lug Hole Diameter (MM): 13.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LINCOLN (1)

OE号码

品牌	号码
OE	121-6509*
