FVP
12165083

第三方数据FVP : 12165083

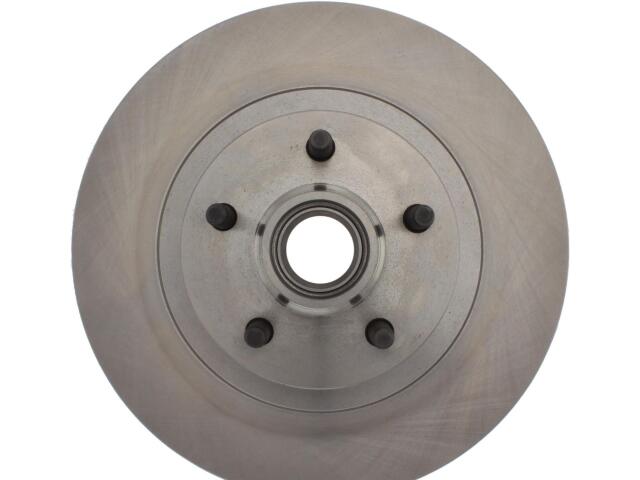

Rotor
FVP : 12165083

ABS Sensor Ring Included: Yes
Bearings Included: No
Bolt Thread Pitch (IN): 20.000
Center Hole Diameter (IN): 2.772
Center Hole Diameter (MM): 70.400
Disc Mounting: Hub & Rotor
Discard Thickness (IN): 0.965
Discard Thickness (MM): 24.500
Inner Bearing #: 410.91005
Inner Seal #: 417.61003
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.031
Nominal Thickness (MM): 26.200
Outer Bearing #: 410.91003
Outside Diameter (IN): 12.008
Outside Diameter (MM): 305.000
Overall Height (IN): 4.252
Overall Height (MM): 108.000
Solid Or Vented Type Rotor: Vented
Stud Thread Diameter (IN): 0.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6508*
