FVP
12165079

第三方数据FVP : 12165079

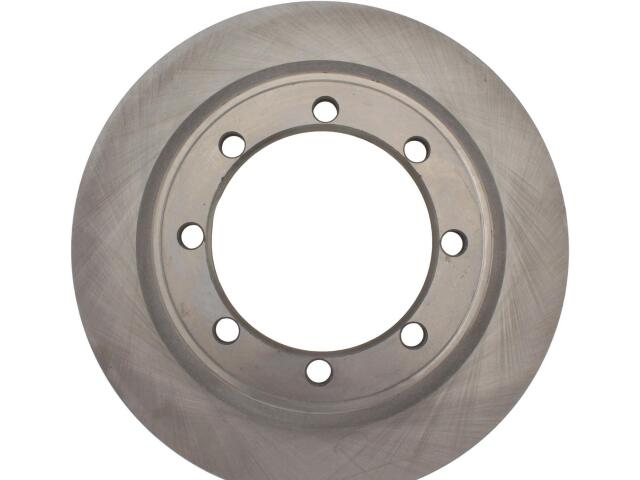

Rotor
FVP : 12165079

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.854
Center Hole Diameter (MM): 123.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Max PB Drum Dia in: 8.157
Max PB Drum Dia mm: 207.200
Mounting Bolt Hole Circle Diameter (IN): 5.709
Mounting Bolt Hole Circle Diameter (MM): 145.000
Nominal Drum Diameter (IN): 8.110
Nominal Drum Diameter (MM): 206.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.835
Outside Diameter (MM): 326.000
Overall Height (IN): 4.358
Overall Height (MM): 110.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 8
Surface Type: Smooth
Vane Style: Pillar

适用车型

FORD (3)

OE号码

品牌	号码
OE	121-6507*
