FVP
12165078

第三方数据FVP : 12165078

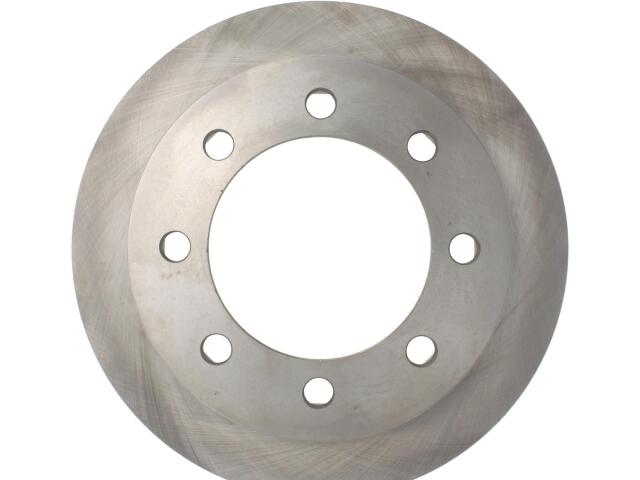

Rotor
FVP : 12165078

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 5.000
Center Hole Diameter (MM): 127.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Max PB Drum Dia in: 8.157
Max PB Drum Dia mm: 207.200
Mounting Bolt Hole Circle Diameter (IN): 6.500
Mounting Bolt Hole Circle Diameter (MM): 165.100
Nominal Drum Diameter (IN): 8.114
Nominal Drum Diameter (MM): 206.100
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.835
Outside Diameter (MM): 326.000
Overall Height (IN): 3.890
Overall Height (MM): 98.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.630
Stud/Lug Hole Diameter (MM): 16.000
Stud/Lug Hole Quantity: 8
Surface Type: Smooth
Vane Style: Pillar

适用车型

FORD (3)

OE号码

品牌	号码
OE	121-6507*
