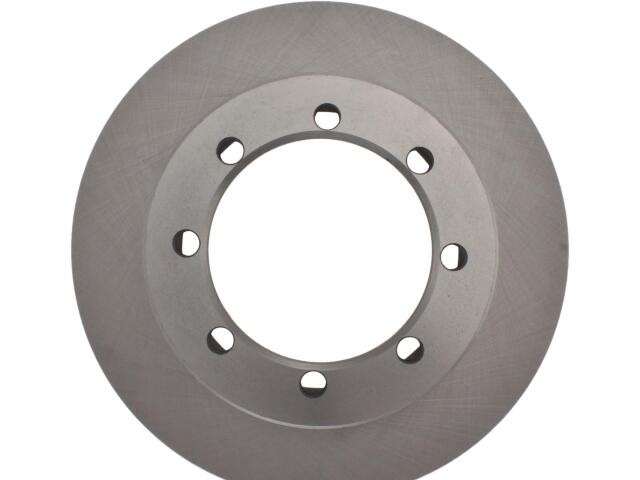

Rotor
FVP : 12165064

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.850
Center Hole Diameter (MM): 123.200
Disc Mounting: Behind the Hub
Discard Thickness (IN): 1.429
Discard Thickness (MM): 36.300
Mounting Bolt Hole Circle Diameter (IN): 5.709
Mounting Bolt Hole Circle Diameter (MM): 145.000
Mounting Bolt Hole Diameter (IN): 0.508
Mounting Bolt Hole Diameter (MM): 12.900
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.500
Nominal Thickness (MM): 38.100
Outside Diameter (IN): 12.902
Outside Diameter (MM): 327.700
Overall Height (IN): 4.874
Overall Height (MM): 123.800
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6506*
