FVP
12163090

第三方数据FVP : 12163090

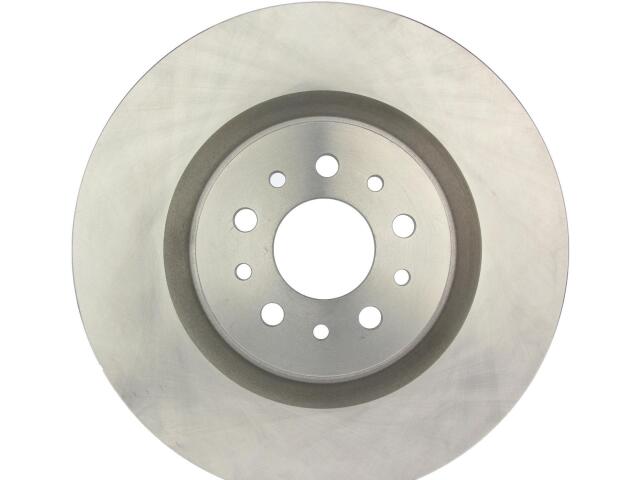

Rotor
FVP : 12163090

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.327
Center Hole Diameter (MM): 59.100
Disc Mounting: Floating
Discard Thickness (IN): 1.004
Discard Thickness (MM): 25.500
Hat ID in: 5.480
Hat ID mm: 139.200
Mounting Bolt Hole Circle Diameter (IN): 3.858
Mounting Bolt Hole Circle Diameter (MM): 98.000
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
OEM Vane Count: 93
Outside Diameter (IN): 12.008
Outside Diameter (MM): 305.000
Overall Height (IN): 1.803
Overall Height (MM): 45.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.520
Stud/Lug Hole Diameter (MM): 13.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

RAM (1)

OE号码

品牌	号码
OE	121-6309*
