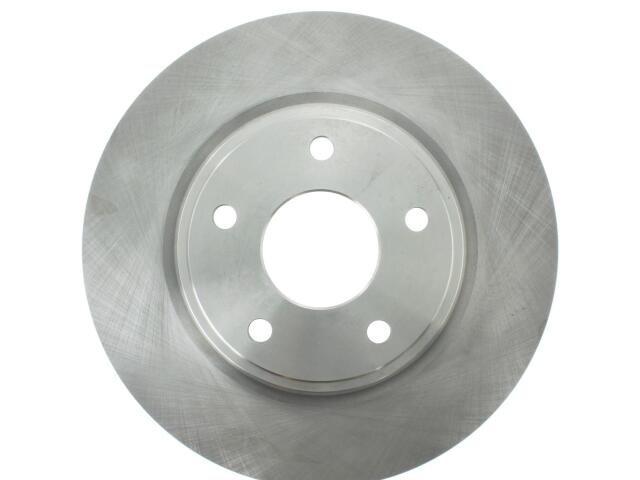

Rotor
FVP : 12163085

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.854
Center Hole Diameter (MM): 72.500
Disc Mounting: Floating
Discard Thickness (IN): 0.409
Discard Thickness (MM): 10.400
Hat ID in: 6.480
Hat ID mm: 164.600
Mounting Bolt Hole Circle Diameter (IN): 5.000
Mounting Bolt Hole Circle Diameter (MM): 127.000
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.000
Overall Height (IN): 1.386
Overall Height (MM): 35.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.567
Stud/Lug Hole Diameter (MM): 14.400
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	121-6308*
