FVP
12163042

第三方数据FVP : 12163042

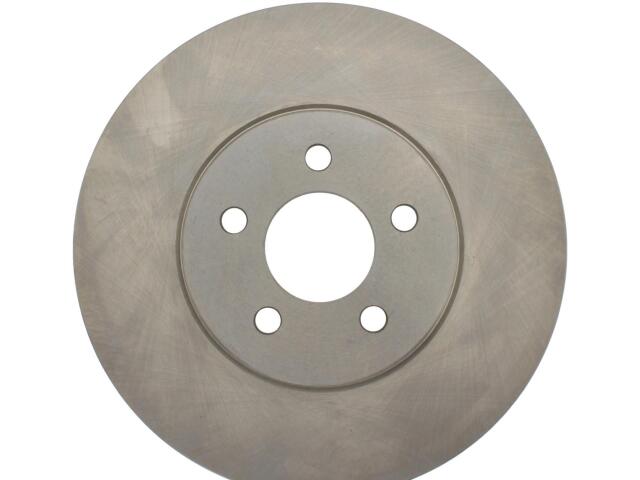

Rotor
FVP : 12163042

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.402
Center Hole Diameter (MM): 61.000
Disc Mounting: Floating
Discard Thickness (IN): 0.843
Discard Thickness (MM): 21.400
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23.000
Outside Diameter (IN): 11.114
Outside Diameter (MM): 282.300
Overall Height (IN): 1.264
Overall Height (MM): 32.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.555
Stud/Lug Hole Diameter (MM): 14.100
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

CHRYSLER (1)

DODGE (1)

OE号码

品牌	号码
OE	121-6304*
