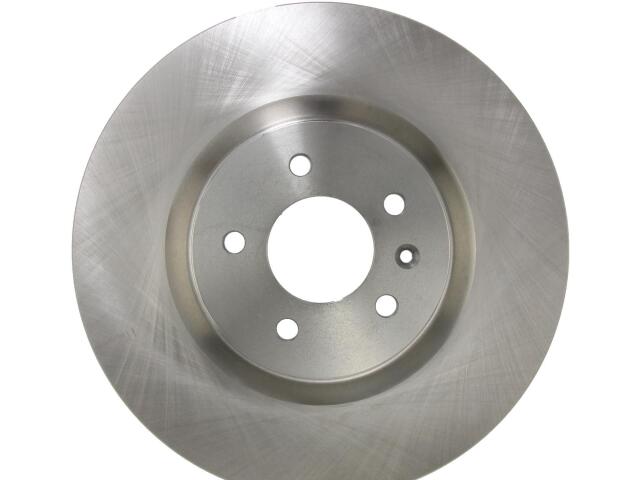

Rotor
FVP : 12162168

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.776
Center Hole Diameter (MM): 70.500
Disc Mounting: Floating
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27.000
Hat ID in: 6.256
Hat ID mm: 158.900
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
OEM Vane Count: 51
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345.000
Overall Height (IN): 1.791
Overall Height (MM): 45.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.563
Stud/Lug Hole Diameter (MM): 14.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Vented

适用车型

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	121-6216*
