FVP
12162152

第三方数据FVP : 12162152

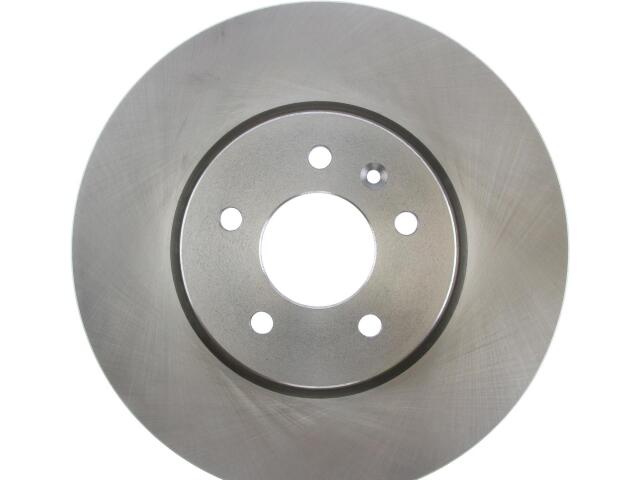

Rotor
FVP : 12162152

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.787
Center Hole Diameter (MM): 70.800
Disc Mounting: Floating
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27.000
Hat ID in: 6.272
Hat ID mm: 159.300
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
OEM Vane Count: 39
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321.000
Overall Height (IN): 1.795
Overall Height (MM): 45.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (2)

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	121-6215*
