FVP
12162142

第三方数据FVP : 12162142

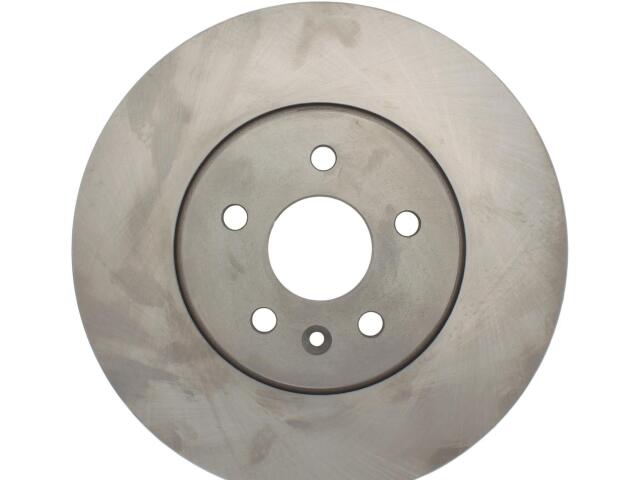

Rotor
FVP : 12162142

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.366
Center Hole Diameter (MM): 60.100
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Hat ID in: 5.803
Hat ID mm: 147.400
Mounting Bolt Hole Circle Diameter (IN): 4.134
Mounting Bolt Hole Circle Diameter (MM): 105.000
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Notes: Can Use 120.62148
OEM Vane Count: 43
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000
Overall Height (IN): 1.799
Overall Height (MM): 45.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

BUICK (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	121-6214*
