FVP
12162135

第三方数据FVP : 12162135

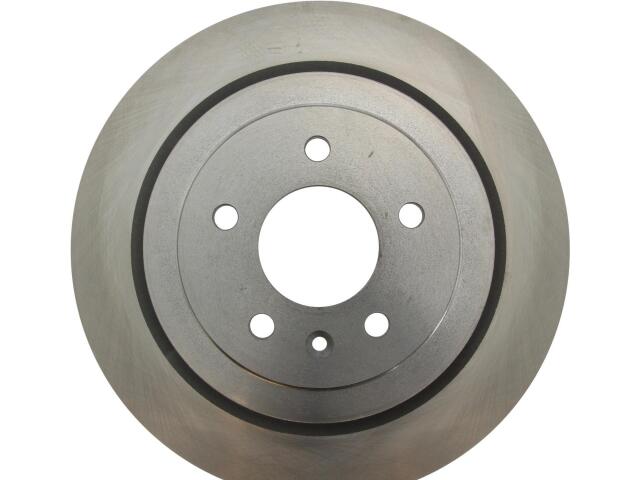

Rotor
FVP : 12162135

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.827
Discard Thickness (MM): 21.000
Hat ID in: 7.697
Hat ID mm: 195.500
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115.000
Nominal Drum Diameter (IN): 7.921
Nominal Drum Diameter (MM): 201.200
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23.000
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315.000
Overall Height (IN): 1.890
Overall Height (MM): 48.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.551
Stud/Lug Hole Diameter (MM): 14.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	121-6213*
