FVP
12162126

第三方数据FVP : 12162126

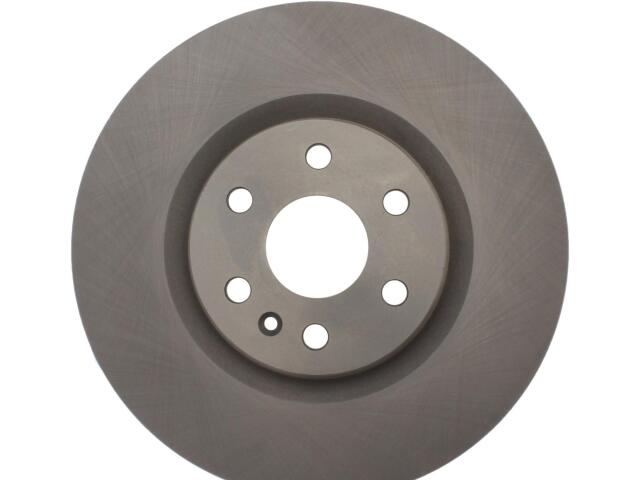

Rotor
FVP : 12162126

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.400
Disc Mounting: Floating
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27.000
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345.000
Overall Height (IN): 2.008
Overall Height (MM): 51.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.634
Stud/Lug Hole Diameter (MM): 16.100
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

SAAB (1)

CADILLAC (1)

OE号码

品牌	号码
OE	121-6212*
