第三方数据FVP : 12162119

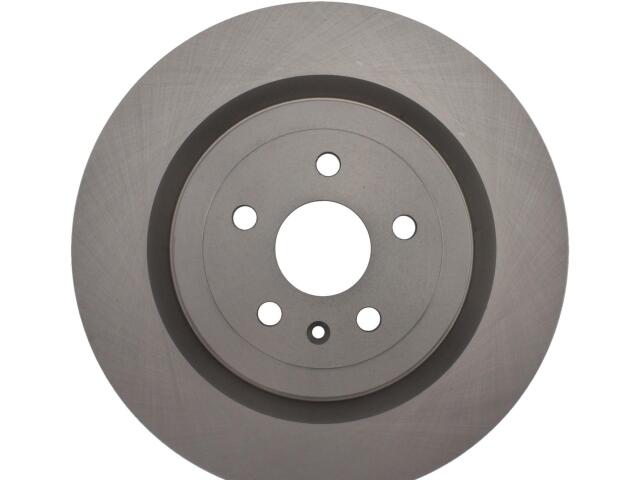

Rotor
FVP : 12162119

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.400
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat ID in: 7.894
Hat ID mm: 200.500
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Drum Diameter (IN): 7.909
Nominal Drum Diameter (MM): 200.900
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 14.370
Outside Diameter (MM): 365.000
Overall Height (IN): 1.874
Overall Height (MM): 47.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.650
Stud/Lug Hole Diameter (MM): 16.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	121-6211*
