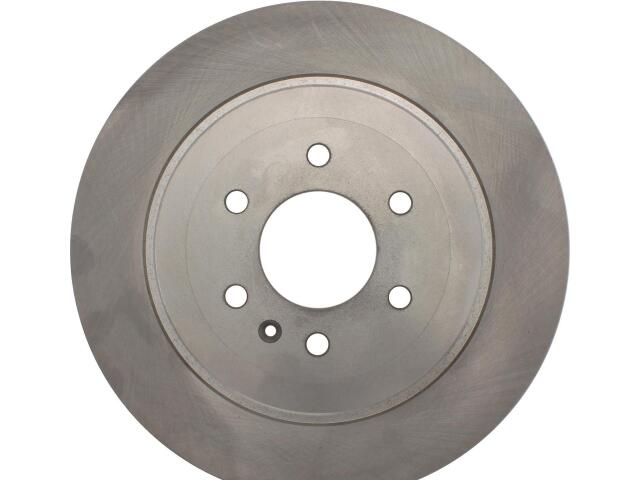

Rotor
FVP : 12162083

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.020
Nominal Thickness (MM): 25.900
Outside Diameter (IN): 12.559
Outside Diameter (MM): 319.000
Overall Height (IN): 1.894
Overall Height (MM): 48.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.516
Stud/Lug Hole Diameter (MM): 13.100
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Pillar

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	121-6208*
