FVP
12162076

第三方数据FVP : 12162076

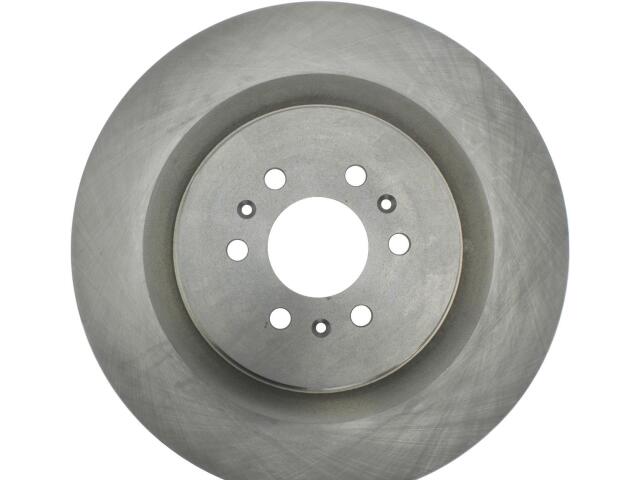

Rotor
FVP : 12162076

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.791
Center Hole Diameter (MM): 70.900
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.484
Nominal Drum Diameter (MM): 190.100
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 14.370
Outside Diameter (MM): 365.000
Overall Height (IN): 1.776
Overall Height (MM): 45.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Pillar

适用车型

CADILLAC (2)

OE号码

品牌	号码
OE	121-6207*
