FVP
12162069

第三方数据FVP : 12162069

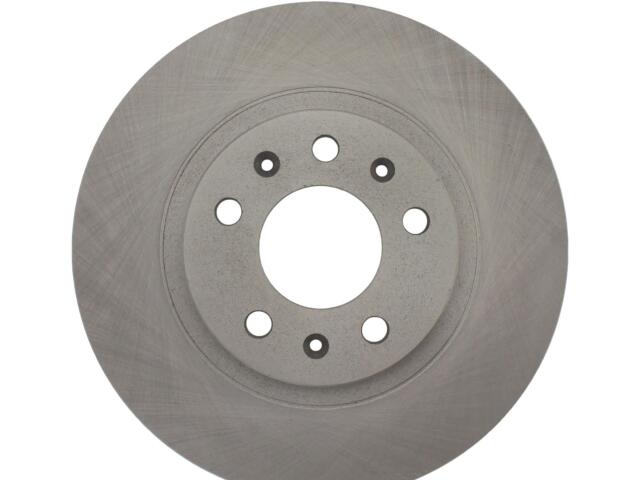

Rotor
FVP : 12162069

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.780
Center Hole Diameter (MM): 70.600
Disc Mounting: Floating
Discard Thickness (IN): 1.209
Discard Thickness (MM): 30.700
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.260
Nominal Thickness (MM): 32.000
Outside Diameter (IN): 11.929
Outside Diameter (MM): 303.000
Overall Height (IN): 2.055
Overall Height (MM): 52.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	121-6206*
