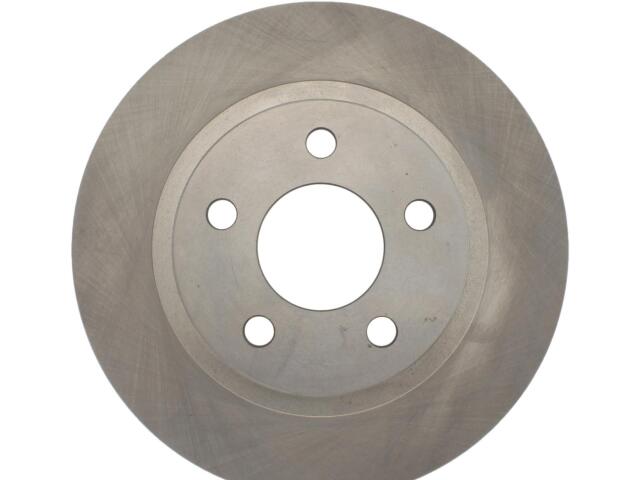

Rotor
FVP : 12162064

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.791
Center Hole Diameter (MM): 70.900
Disc Mounting: Floating
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Mounting Bolt Hole Circle Diameter (IN): 4.646
Mounting Bolt Hole Circle Diameter (MM): 118.000
Nominal Thickness (IN): 0.441
Nominal Thickness (MM): 11.200
Outside Diameter (IN): 11.720
Outside Diameter (MM): 297.700
Overall Height (IN): 1.528
Overall Height (MM): 38.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.642
Stud/Lug Hole Diameter (MM): 16.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CADILLAC (1)

PONTIAC (1)

OE号码

品牌	号码
OE	121-6206*
