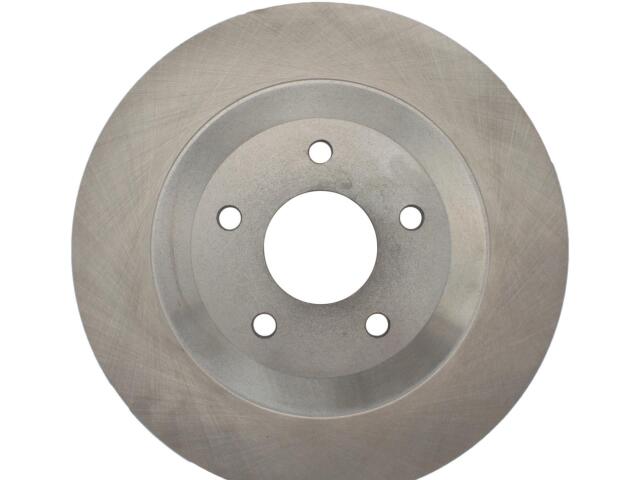

Rotor
FVP : 12162059

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 1.193
Discard Thickness (MM): 30.300
Mounting Bolt Hole Circle Diameter (IN): 4.748
Mounting Bolt Hole Circle Diameter (MM): 120.600
Nominal Thickness (IN): 1.264
Nominal Thickness (MM): 32.100
Outside Diameter (IN): 12.791
Outside Diameter (MM): 324.900
Overall Height (IN): 1.787
Overall Height (MM): 45.400
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.531
Stud/Lug Hole Diameter (MM): 13.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Curved

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	121-6205*
