FVP
12161123

第三方数据FVP : 12161123

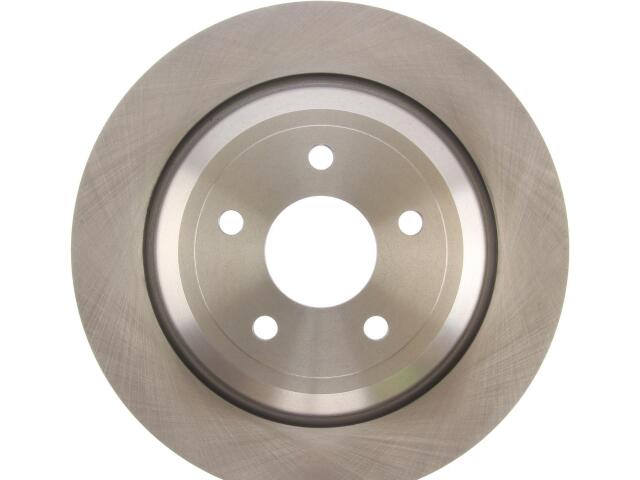

Rotor
FVP : 12161123

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.500
Center Hole Diameter (MM): 63.500
Disc Mounting: Floating
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Hat ID in: 7.291
Hat ID mm: 185.200
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 11.890
Outside Diameter (MM): 302.000
Overall Height (IN): 1.610
Overall Height (MM): 40.900
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.535
Stud/Lug Hole Diameter (MM): 13.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (3)

LINCOLN (1)

OE号码

品牌	号码
OE	121-6112*
