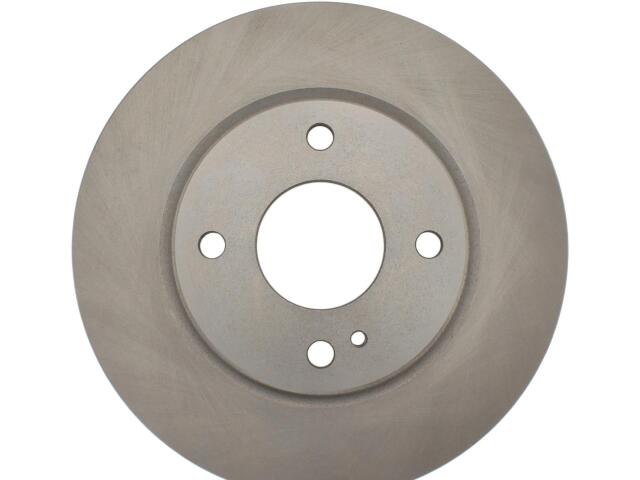

Rotor
FVP : 12161096

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.500
Center Hole Diameter (MM): 63.500
Disc Mounting: Floating
Discard Thickness (IN): 0.827
Discard Thickness (MM): 21.000
Hat ID in: 5.244
Hat ID mm: 133.200
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23.000
OEM Vane Count: 41
Outside Diameter (IN): 10.157
Outside Diameter (MM): 258.000
Overall Height (IN): 1.728
Overall Height (MM): 43.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (2)

OE号码

品牌	号码
OE	121-6109*
