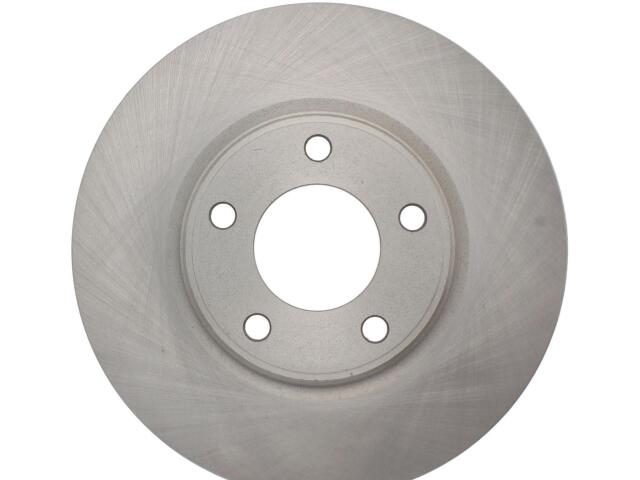

Rotor
FVP : 12161092

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 11.654
Outside Diameter (MM): 296.000
Overall Height (IN): 1.902
Overall Height (MM): 48.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.551
Stud/Lug Hole Diameter (MM): 14.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	121-6109*
