FVP
12161088

第三方数据FVP : 12161088

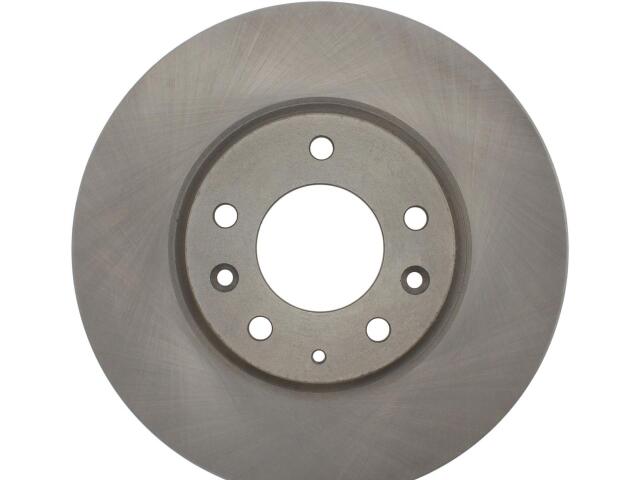

Rotor
FVP : 12161088

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.839
Center Hole Diameter (MM): 72.100
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.980
Nominal Thickness (MM): 24.900
Outside Diameter (IN): 11.772
Outside Diameter (MM): 299.000
Overall Height (IN): 1.913
Overall Height (MM): 48.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.520
Stud/Lug Hole Diameter (MM): 13.220
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

MAZDA (1)

LINCOLN (2)

MERCURY (1)

OE号码

品牌	号码
OE	121-6108*
