FVP
12161087

第三方数据FVP : 12161087

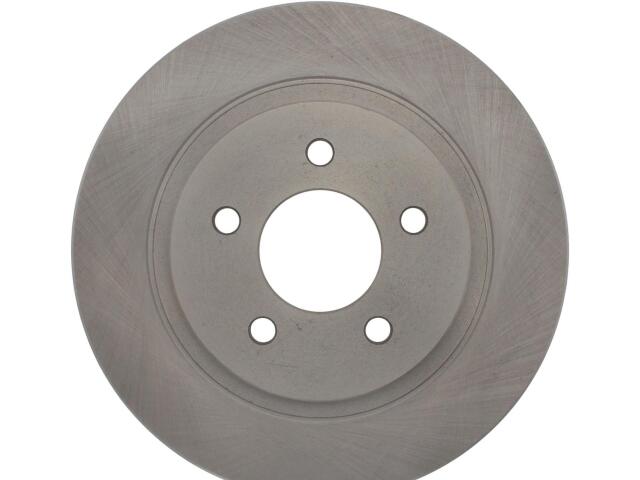

Rotor
FVP : 12161087

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 0.685
Discard Thickness (MM): 17.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.752
Nominal Thickness (MM): 19.100
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000
Overall Height (IN): 1.386
Overall Height (MM): 35.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.579
Stud/Lug Hole Diameter (MM): 14.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6108*
