FVP
12161085

第三方数据FVP : 12161085

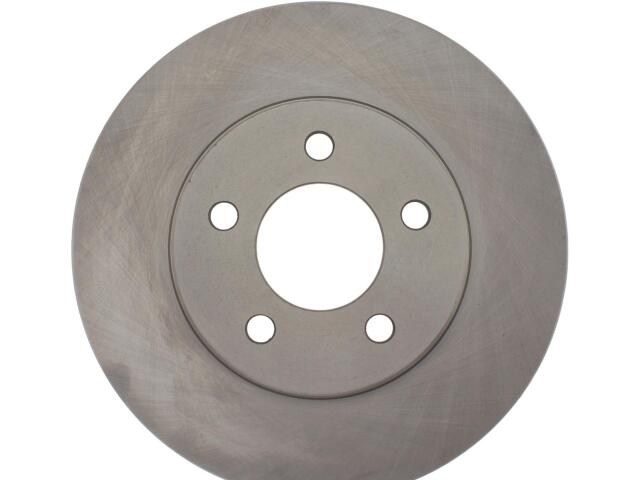

Rotor
FVP : 12161085

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.795
Center Hole Diameter (MM): 71.000
Disc Mounting: Floating
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.177
Nominal Thickness (MM): 29.900
Outside Diameter (IN): 11.535
Outside Diameter (MM): 293.000
Overall Height (IN): 1.890
Overall Height (MM): 48.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.599
Stud/Lug Hole Diameter (MM): 15.220
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6108*
