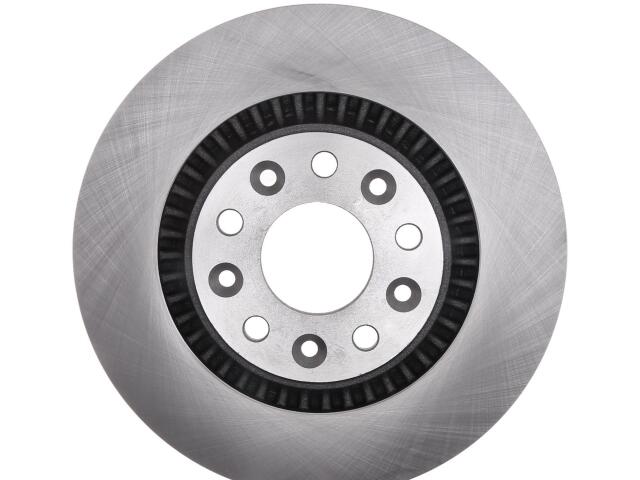

Rotor
FVP : 12161080

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.043
Discard Thickness (MM): 26.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.098
Nominal Thickness (MM): 27.900
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315.000
Overall Height (IN): 1.850
Overall Height (MM): 47.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.565
Stud/Lug Hole Diameter (MM): 14.340
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (4)

MERCURY (2)

OE号码

品牌	号码
OE	121-6108*
