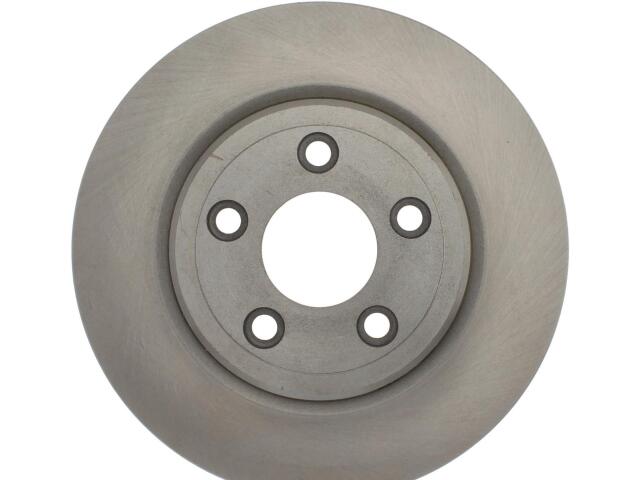

Rotor
FVP : 12161062

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.535
Center Hole Diameter (MM): 64.400
Disc Mounting: Floating
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.500
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 11.339
Outside Diameter (MM): 288.000
Overall Height (IN): 1.287
Overall Height (MM): 32.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.555
Stud/Lug Hole Diameter (MM): 14.100
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

JAGUAR (3)

LINCOLN (1)

OE号码

品牌	号码
OE	121-6106*
