FVP
12161061

第三方数据FVP : 12161061

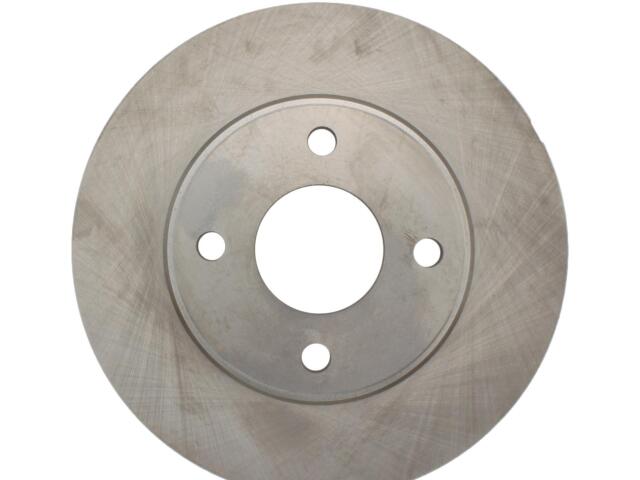

Rotor
FVP : 12161061

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.504
Center Hole Diameter (MM): 63.600
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 10.154
Outside Diameter (MM): 257.900
Overall Height (IN): 1.709
Overall Height (MM): 43.400
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.543
Stud/Lug Hole Diameter (MM): 13.800
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (2)

OE号码

品牌	号码
OE	121-6106*
