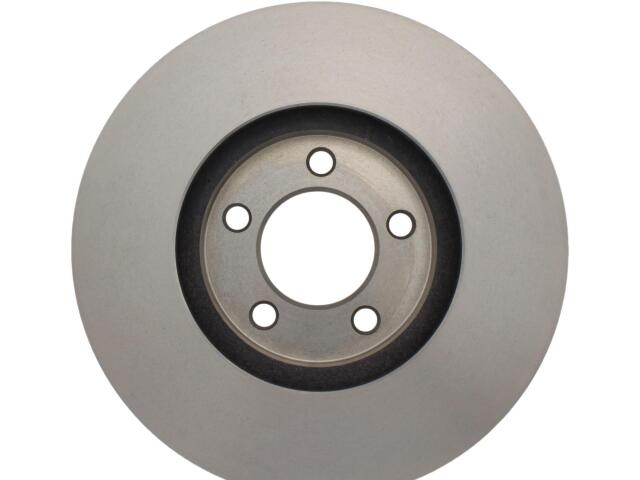

Rotor
FVP : 12161049

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.795
Center Hole Diameter (MM): 71.000
Disc Mounting: Floating
Discard Thickness (IN): 0.974
Discard Thickness (MM): 24.750
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 11.575
Outside Diameter (MM): 294.000
Overall Height (IN): 1.835
Overall Height (MM): 46.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

CHRYSLER (1)

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	121-6104*
