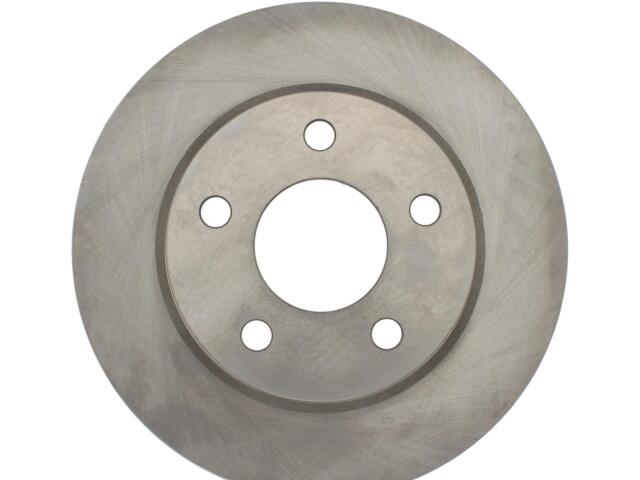

Rotor
FVP : 12161039

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.539
Center Hole Diameter (MM): 64.500
Disc Mounting: Floating
Discard Thickness (IN): 0.502
Discard Thickness (MM): 12.750
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.559
Nominal Thickness (MM): 14.200
Outside Diameter (IN): 10.087
Outside Diameter (MM): 256.200
Overall Height (IN): 1.543
Overall Height (MM): 39.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.575
Stud/Lug Hole Diameter (MM): 14.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	121-6103*
