FVP
12158003

第三方数据FVP : 12158003

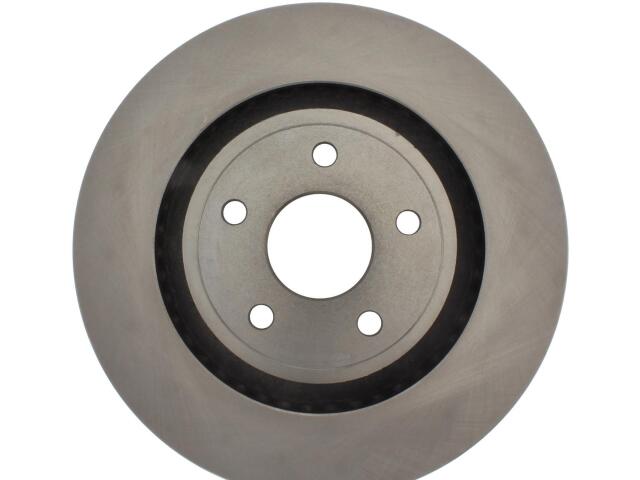

Rotor
FVP : 12158003

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating
Discard Thickness (IN): 1.252
Discard Thickness (MM): 31.800
Mounting Bolt Hole Circle Diameter (IN): 4.992
Mounting Bolt Hole Circle Diameter (MM): 126.800
Nominal Thickness (IN): 1.260
Nominal Thickness (MM): 32.000
Outside Diameter (IN): 14.173
Outside Diameter (MM): 360.000
Overall Height (IN): 2.087
Overall Height (MM): 53.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.642
Stud/Lug Hole Diameter (MM): 16.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

JEEP (1)

OE号码

品牌	号码
OE	121-5800*
