第三方数据FVP : 12158002

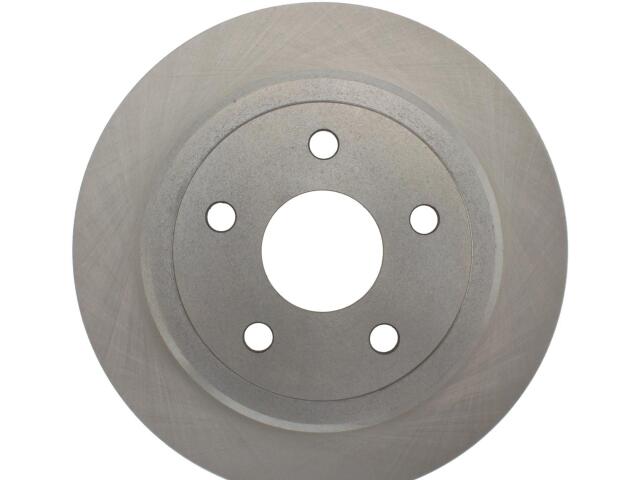

Rotor
FVP : 12158002

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.831
Center Hole Diameter (MM): 71.900
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.492
Discard Thickness (MM): 12.500
Max PB Drum Dia in: 8.110
Max PB Drum Dia mm: 206.000
Mounting Bolt Hole Circle Diameter (IN): 4.992
Mounting Bolt Hole Circle Diameter (MM): 126.800
Nominal Drum Diameter (IN): 8.071
Nominal Drum Diameter (MM): 205.000
Nominal Thickness (IN): 0.555
Nominal Thickness (MM): 14.100
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.000
Overall Height (IN): 2.614
Overall Height (MM): 66.400
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.638
Stud/Lug Hole Diameter (MM): 16.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

JEEP (2)

GRAND CHEROKEE (5)

COMMANDER (3)

OE号码

品牌	号码
OE	121-5800*
