FVP
12151068

第三方数据FVP : 12151068

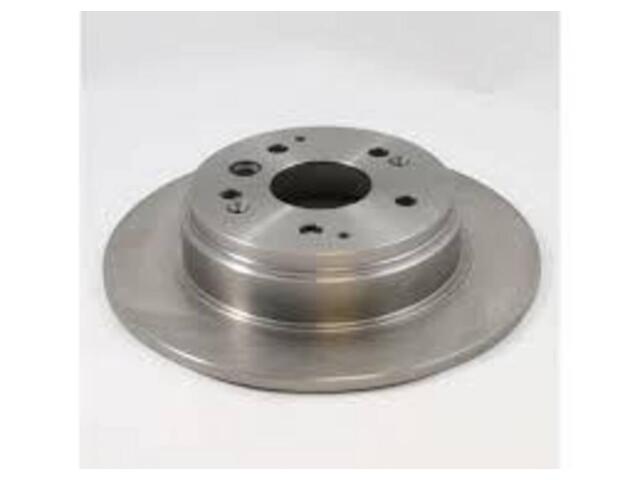

Rotor
FVP : 12151068

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Hat ID in: 5.673
Hat ID mm: 144.100
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
OEM Vane Count: 48
Outside Diameter (IN): 13.004
Outside Diameter (MM): 330.300
Overall Height (IN): 2.071
Overall Height (MM): 52.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

HYUNDAI (2)

OE号码

品牌	号码
OE	121-5106*
