FVP
12151049

第三方数据FVP : 12151049

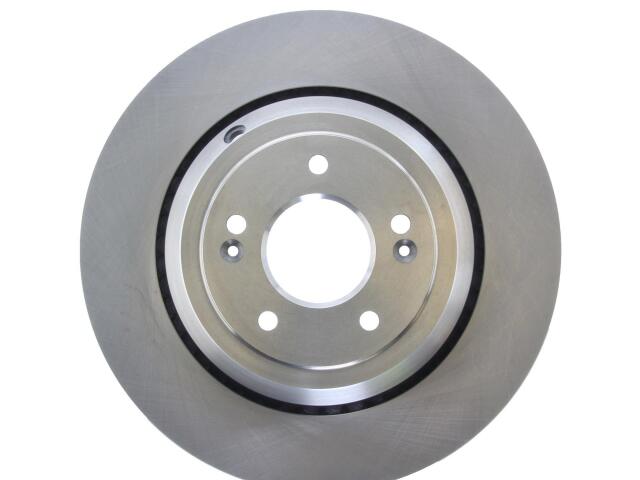

Rotor
FVP : 12151049

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 7.890
Hat ID mm: 200.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 13.425
Outside Diameter (MM): 341.000
Overall Height (IN): 2.433
Overall Height (MM): 61.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.484
Stud/Lug Hole Diameter (MM): 12.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

GENESIS (1)

OE号码

品牌	号码
OE	121-5104*
