FVP
12151042

第三方数据FVP : 12151042

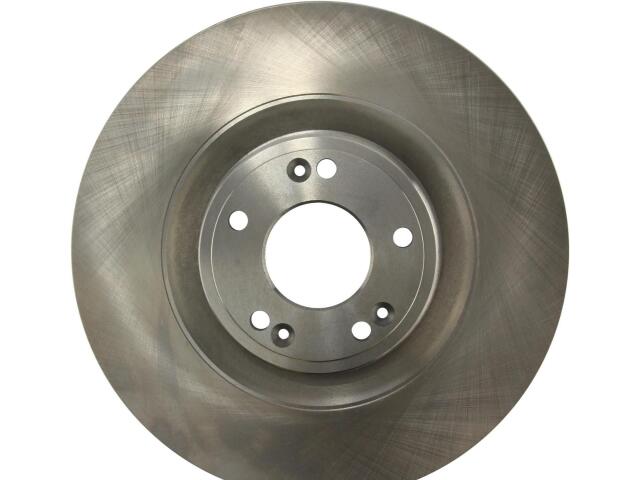

Rotor
FVP : 12151042

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.400
Hat ID in: 5.681
Hat ID mm: 144.300
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345.000
Overall Height (IN): 2.228
Overall Height (MM): 56.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

HYUNDAI (2)

KIA (1)

OE号码

品牌	号码
OE	121-5104*
