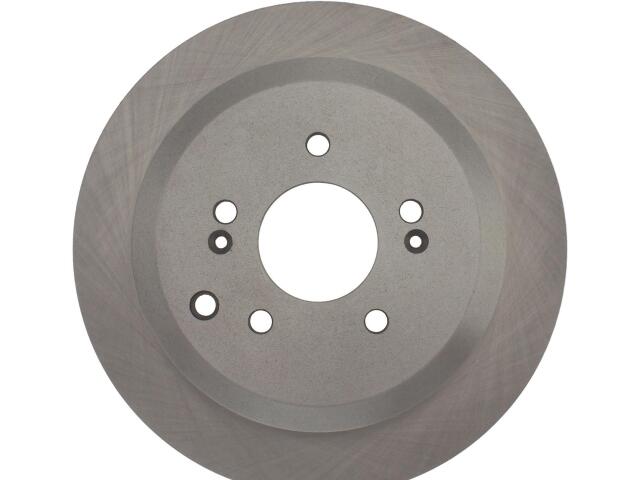

Rotor
FVP : 12151027

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.409
Discard Thickness (MM): 10.400
Max PB Drum Dia in: 8.307
Max PB Drum Dia mm: 211.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 8.268
Nominal Drum Diameter (MM): 210.000
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 12.756
Outside Diameter (MM): 324.000
Overall Height (IN): 2.638
Overall Height (MM): 67.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	121-5102*
