FVP
12151022

第三方数据FVP : 12151022

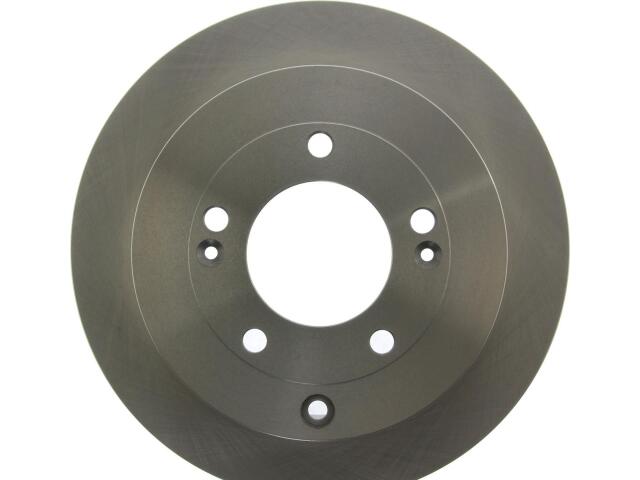

Rotor
FVP : 12151022

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.992
Center Hole Diameter (MM): 76.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.400
Hat ID in: 7.134
Hat ID mm: 181.200
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.181
Outside Diameter (MM): 284.000
Overall Height (IN): 2.150
Overall Height (MM): 54.600
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	121-5102*
