第三方数据FVP : 12151017

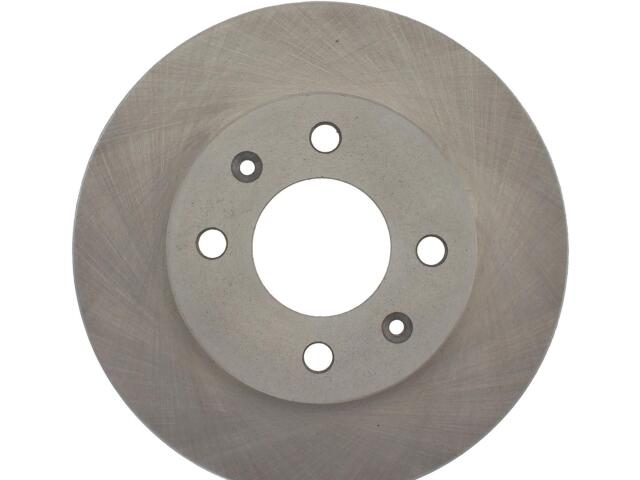

Rotor
FVP : 12151017

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.449
Center Hole Diameter (MM): 62.200
Disc Mounting: Floating
Discard Thickness (IN): 0.669
Discard Thickness (MM): 17.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.748
Nominal Thickness (MM): 19.000
Outside Diameter (IN): 9.488
Outside Diameter (MM): 241.000
Overall Height (IN): 2.047
Overall Height (MM): 52.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

HYUNDAI (1)

DODGE (1)

OE号码

品牌	号码
OE	121-5101*
