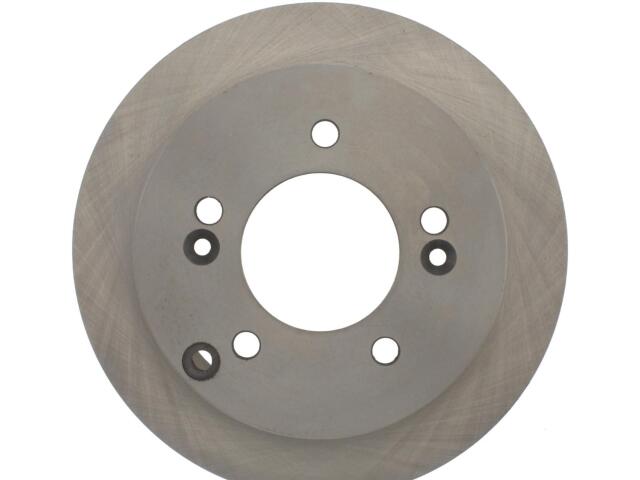

Rotor
FVP : 12151011

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.996
Center Hole Diameter (MM): 76.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.400
Max PB Drum Dia in: 6.654
Max PB Drum Dia mm: 169.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 6.618
Nominal Drum Diameter (MM): 168.100
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.315
Outside Diameter (MM): 262.000
Overall Height (IN): 2.402
Overall Height (MM): 61.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HYUNDAI (3)

KIA (3)

SPORTAGE (2)

MAGENTIS (2)

OPTIMA (2)

OE号码

品牌	号码
OE	121-5101*
