第三方数据FVP : 12151009

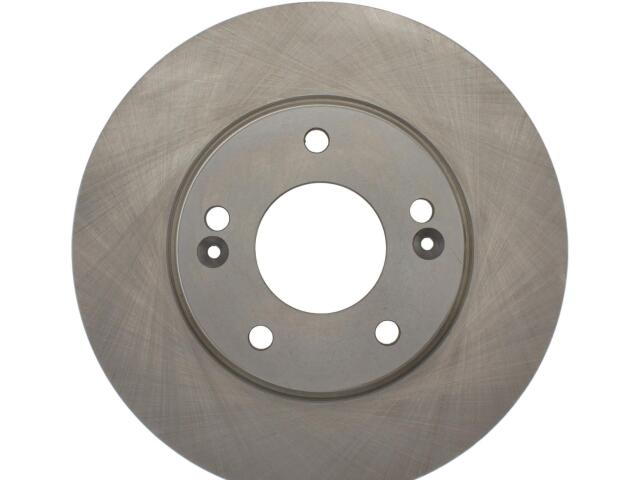

Rotor
FVP : 12151009

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 0.961
Discard Thickness (MM): 24.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 10.866
Outside Diameter (MM): 276.000
Overall Height (IN): 1.823
Overall Height (MM): 46.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	121-5100*
