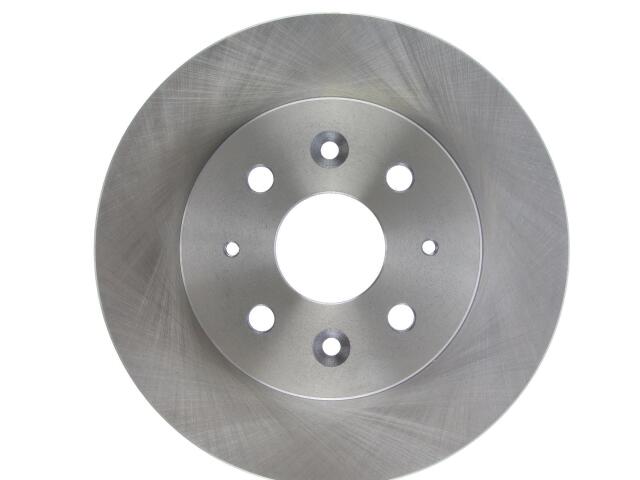

Rotor
FVP : 12150011

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating
Discard Thickness (IN): 0.866
Discard Thickness (MM): 22.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 10.000
Outside Diameter (MM): 254.000
Overall Height (IN): 2.000
Overall Height (MM): 50.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.508
Stud/Lug Hole Diameter (MM): 12.900
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

KIA (1)

OE号码

品牌	号码
OE	121-5001*
