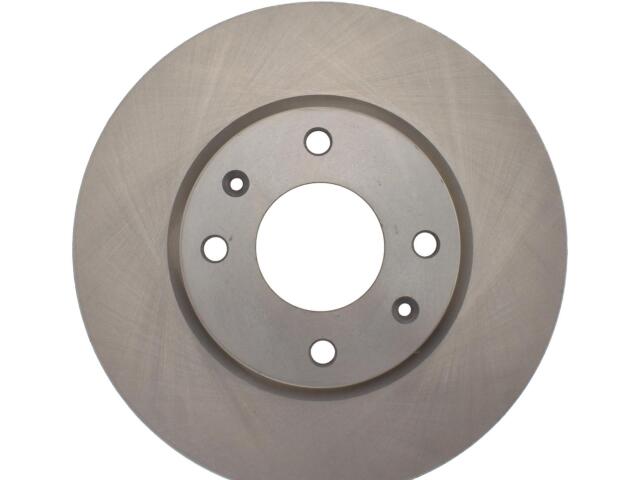

Rotor
FVP : 12150010

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 0.961
Discard Thickness (MM): 24.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 11.024
Outside Diameter (MM): 280.000
Overall Height (IN): 1.870
Overall Height (MM): 47.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.490
Stud/Lug Hole Diameter (MM): 12.450
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

HYUNDAI (1)

KIA (2)

OE号码

品牌	号码
OE	121-5001*
